Products
Motors
NdFeB magnets for electric motors including BLDC motors, servo motors, and stepper motors, ensuring high efficiency and stable performance.
Magnet Application
Typical Magnet Types
Suggested Grades
Operating Temp.
Key Performance Requirements

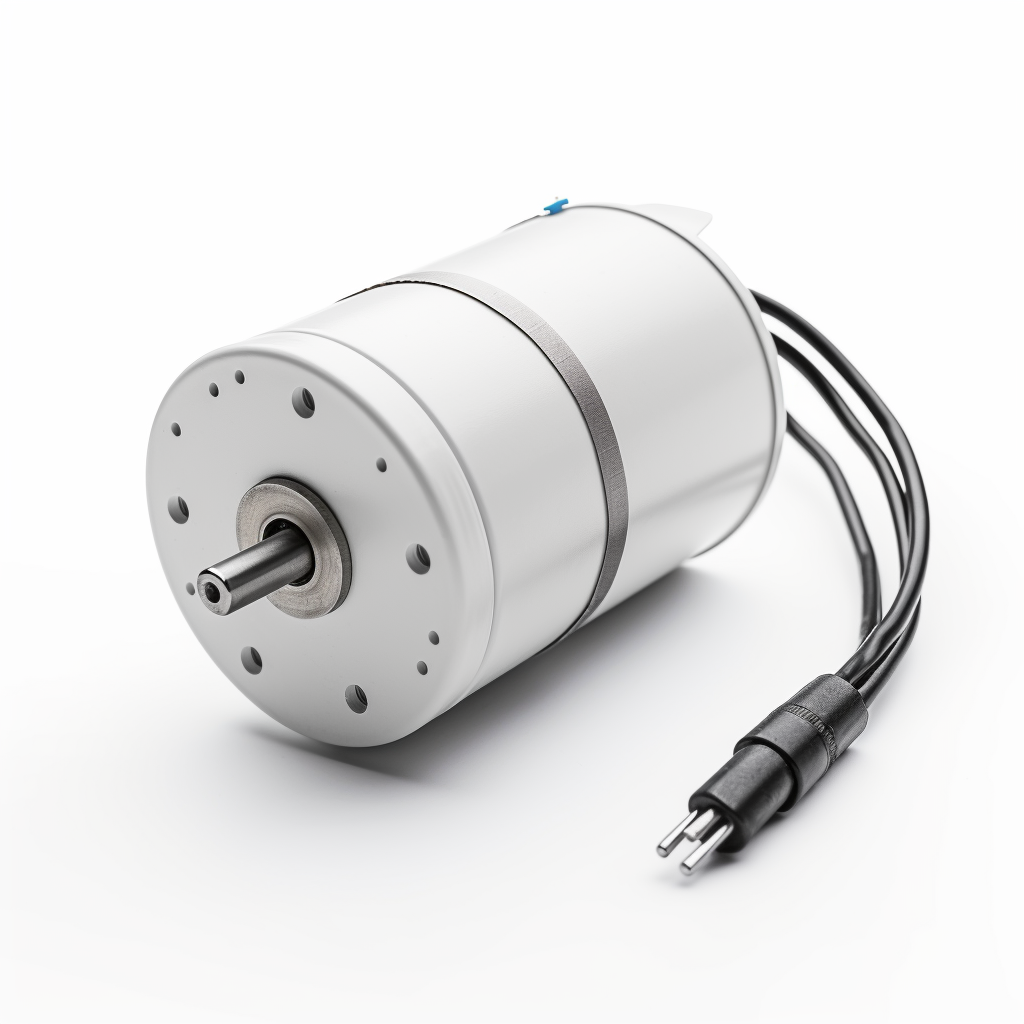

BLDC Motors
Arc (Segment), Ring
General Use: N42–N48 (High Stability/Temp: N42H–N48H)
80–120°C (Up to 150°C)
- High efficiency
- High power density
- Thermal stability
- Demagnetization resistance
- High power density
- Thermal stability
- Demagnetization resistance

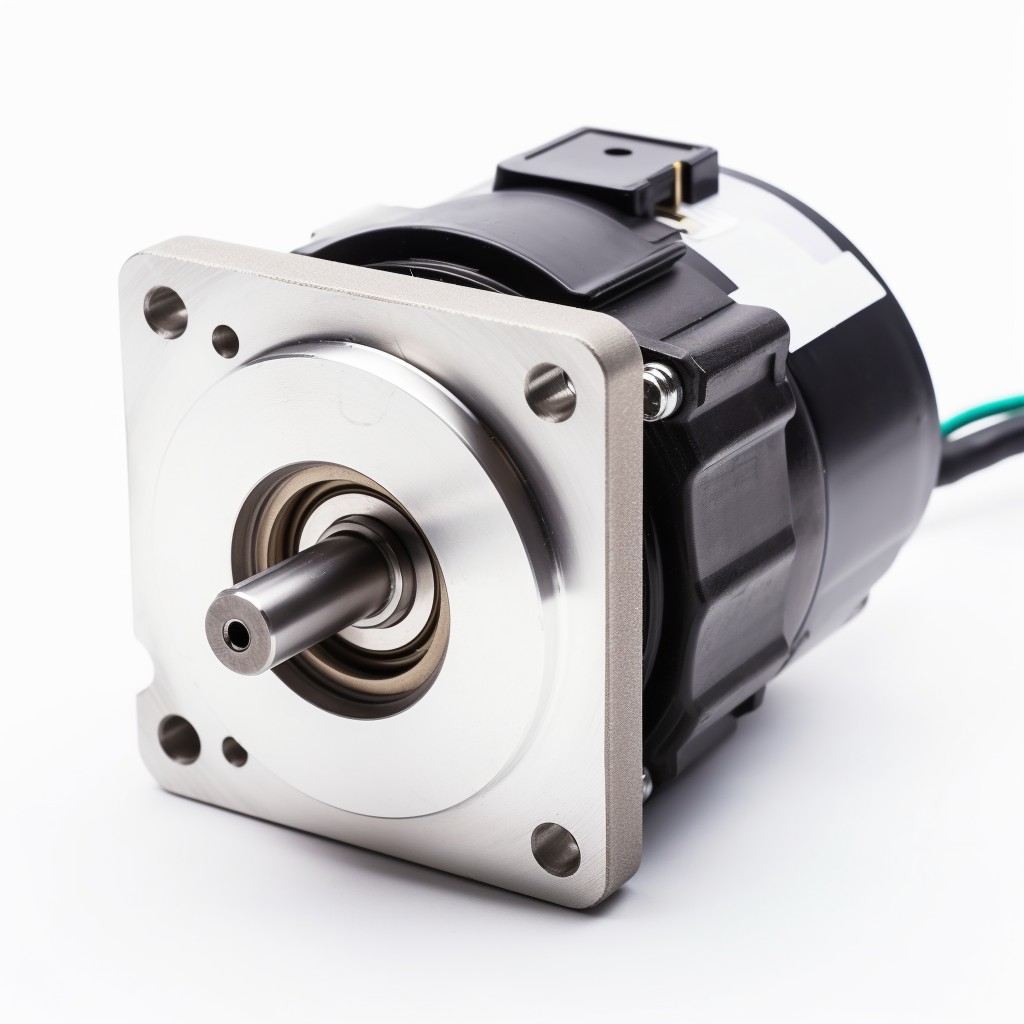

Servo Motors
Arc (Segment), Block
General Use: N42–N52 (High Stability/Temp: N42H-N48SH)
80–150°C (Up to 180°C)
- High magnetic consistency
- High torque density
- Demagnetization resistance
- Thermal stability
- High torque density
- Demagnetization resistance
- Thermal stability

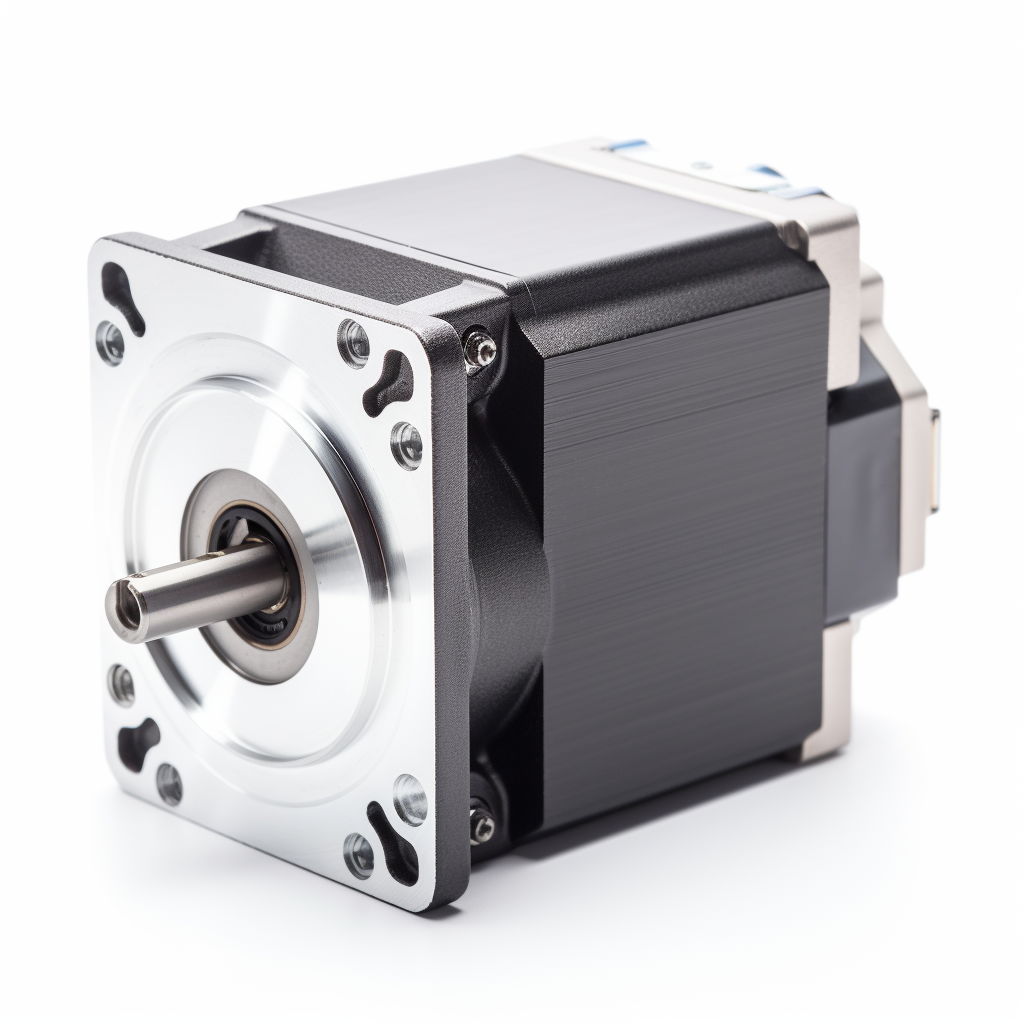

Stepper Motors
Ring, Block
General Use: N35–N48 (High Precision: N42H–N45H)
80–120°C
- Magnetic uniformity
- Positioning accuracy
- Stable torque output
- Thermal stability
- Positioning accuracy
- Stable torque output
- Thermal stability
