Robotics & Automation
NdFeB magnets for robotics & automation systems, enabling precise motion control, high torque density, and reliable performance.
Magnet Application
Typical Magnet Types
Suggested Grades
Operating Temp.
Key Performance Requirements

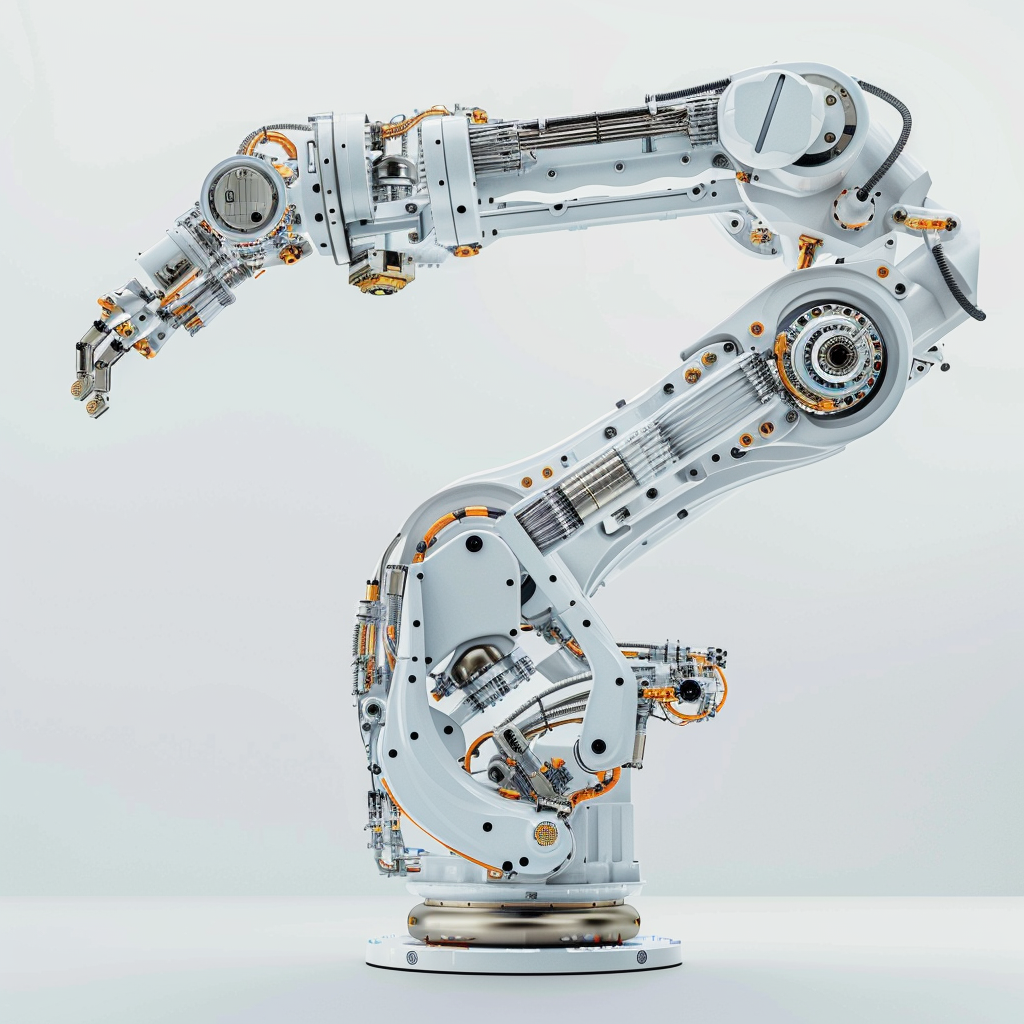

Robotic Systems
Arc (Segment), Ring
General Use: N42–N52 (High Stability: N42SH–N48SH)
80–150°C (Up to 180°C)
- High torque density
- High demagnetization resistance
- Thermal stability under continuous operation
- High demagnetization resistance
- Thermal stability under continuous operation

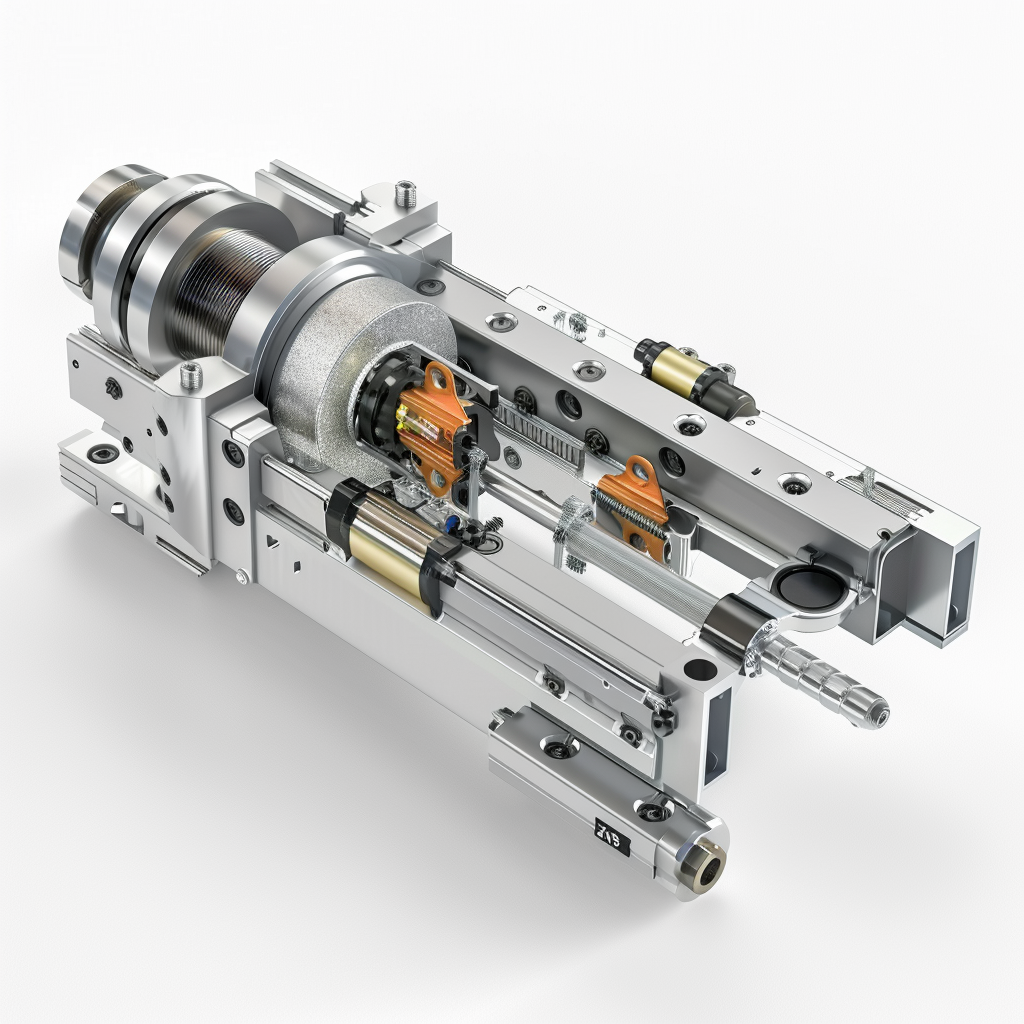

Actuation Systems
Block, Ring, Arc
General Use: N40–N48 (High Temp: N42H–N45H)
60–120°C (Up to 150°C)
- Consistent force output
- Dimensional precision
- Long-term magnetic stability
- Dimensional precision
- Long-term magnetic stability

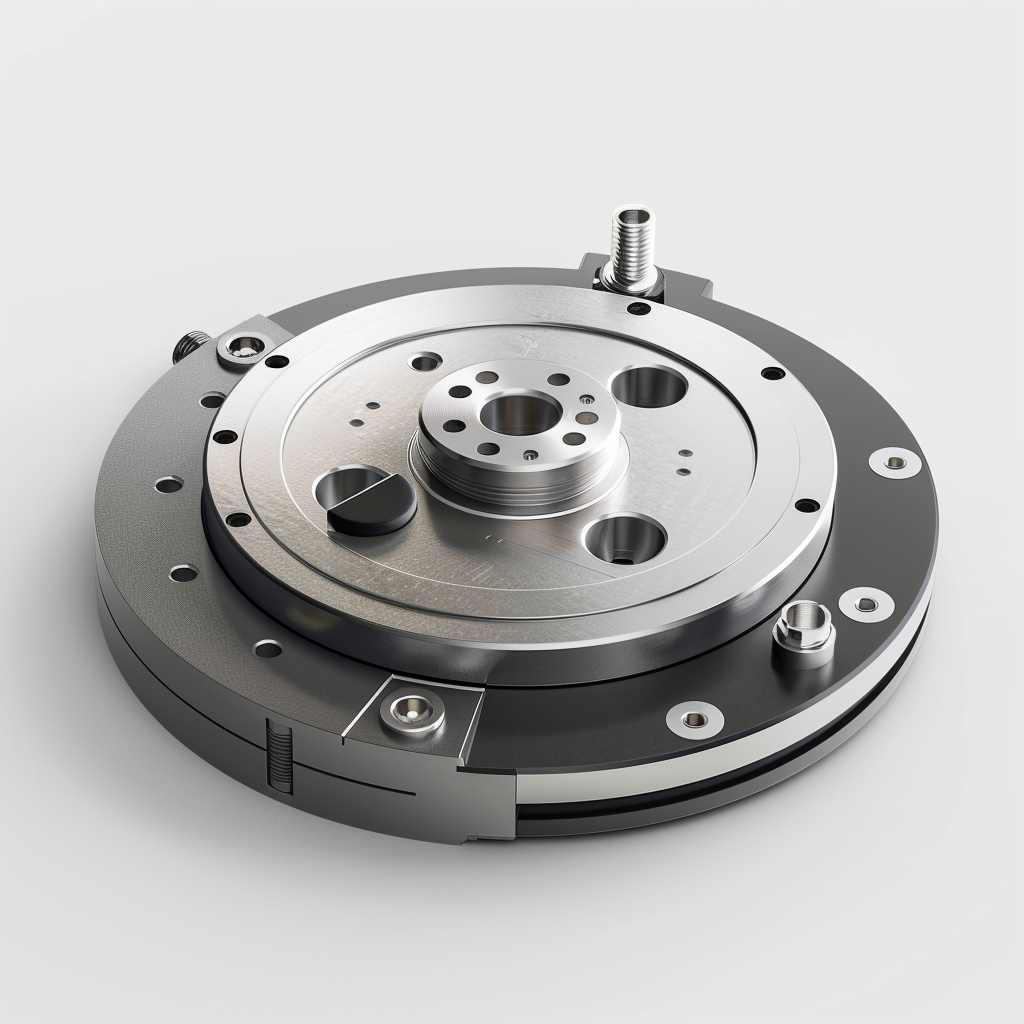

Sensors & Encoders
Ring, Block (Small), Bonded
General Use: N35–N48 (High Temp: N42H–N45H)
40–120°C
- Magnetic uniformity
- Stable magnetic output
- Batch consistency
- Stable magnetic output
- Batch consistency
