Why 0.02mm Geometric Tolerance Is the Unsung Hero of Robotic Actuator Performance

Quick Summary

Magnets are no longer just raw materials—they are high-precision mechanical components. In robotic actuators, a standard dimension tolerance of $\pm0.05\text{mm}$ creates asymmetrical magnetic pull, inducing severe radial vibration that destroys expensive cross-roller bearings. Nexal’s strict $0.02\text{mm}$ geometric standard guarantees system balance and doubles bearing longevity.

1. The Hidden Mechanical Ripple Effect of Bad Tolerances

When a robotic actuator experiences high noise levels or sudden torque ripple, engineers usually blame the software control loop or the harmonic reducer. The actual culprit is often the physical size variance of the rotor magnets.

Standard industry tolerances ( $\pm0.05\text{mm}$ ) might seem negligible on paper, but within a tight robotic air gap, they cause severe mechanical damage:

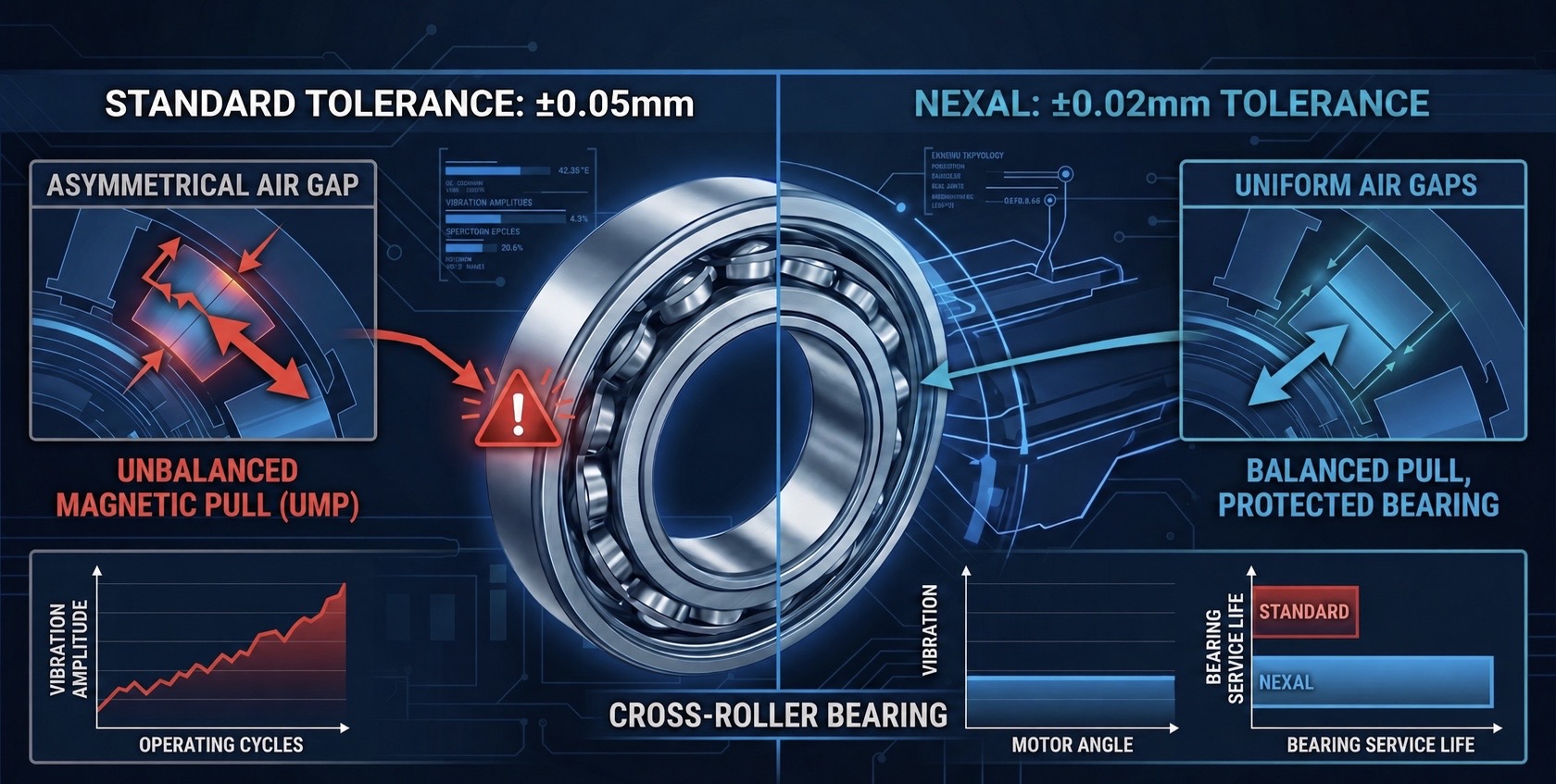

Size Variance (±0.05mm) ➔ Asymmetrical Air Gap ➔ Unbalanced Magnetic Pull (UMP) ➔ Bearing Fatigue ❌

2. Protecting the Core Component: Cross-Roller Bearings

Robotic joints rely heavily on high-precision cross-roller bearings to handle simultaneous axial, radial, and tilting moments. These bearings are highly sensitive to eccentric loads.

The Problem: An asymmetrical air gap creates Unbalanced Magnetic Pull (UMP). This continuous, uneven radial force pulls the rotor off-center, overloading the bearing tracks unevenly.
The Result: Accelerated race wear, increased audible noise, audible chatter during micro-movements, and a dramatic drop in the actuator’s repeat positioning accuracy.

3. Engineering Precision: How Nexal Achieves 0.02mm Certainty

To prevent dynamic imbalance and safeguard your bearing assemblies, Nexal treats magnets as micro-engineered mechanical parts, optimizing three distinct geometric characteristics:

Thickness & Profile Consistency: Utilizing multi-wire diamond slicing systems to ensure parallel flat surfaces on custom Segments, Arcs, and Blocks.
Zero-Defect Chamfering: Eliminating microscopic edge-chipping that can shift the center of mass during high-RPM operations.
100% Automated Mechanical Sorting: Every production lot is verified through automated multi-axis non-contact measurement tools to confirm absolute physical conformance.

4. Direct Engineering Benefits for Actuator OEMs

Structural Metric	Industry Standard (±0.05mm)	Nexal Standard (±0.02mm)	Direct System Benefit
Air Gap Symmetry	High Variance	Flawless Uniformity	Eliminates Unbalanced Magnetic Pull
Torque Ripple	Harmonic Distortions	Minimized Smooth Flow	Perfect for Micro-positioning & Cobots
Bearing Service Life	Reduced due to eccentric fatigue	Maximized & Protected	Lowers Warranty Claims & Maintenance Costs

Conclusion: Elevate Your Hardware Standards

Your software can only compensate for so much. True mechanical reliability starts at the sub-millimeter level of your permanent magnet arrays.

Tired of mysterious joint vibrations and noise issues? Stop guessing. Send us your structural drawings and experience what geometric certainty feels like. Get a Free Tolerance Evaluation from Nexal.
