GBD Technology: How NEXAL Achieves High Coercivity for Robotic Joint Motors Without High Heavy-Rare-Earth Costs

Quick Summary

For robotic joint motors, maximizing torque density requires high coercivity ( $H_{cj}$ ), which usually means buying expensive heavy rare earth (HRE) magnets. Nexal’s flexible Grain Boundary Diffusion (GBD) technology strategically infuses Dysprosium (Dy) or Terbium (Tb) only where it matters, slashing material costs while maintaining top-tier $B_r$ performance for growing robot OEMs.

1. The Robotic Joint Dilemma: Coercivity vs. Remanence

Robotic actuators and cobot joints operate under extreme current spikes, demanding magnets with exceptional intrinsic coercivity ( $H_{cj}$ ) to prevent reverse-field demagnetization.

Traditionally, adding Dysprosium (Dy) to the entire chemical melt was the only option. However, this old method triggers two major issues:

The Remanence ( $B_r$ ) Drop: Alloying HRE globally decreases the residual flux density, meaning your motor loses torque density.
The Cost Trap: Heavy rare earths are volatile commodity monopolies. For SME robotics startups, standard HRE magnets make scaling cost-prohibitive.

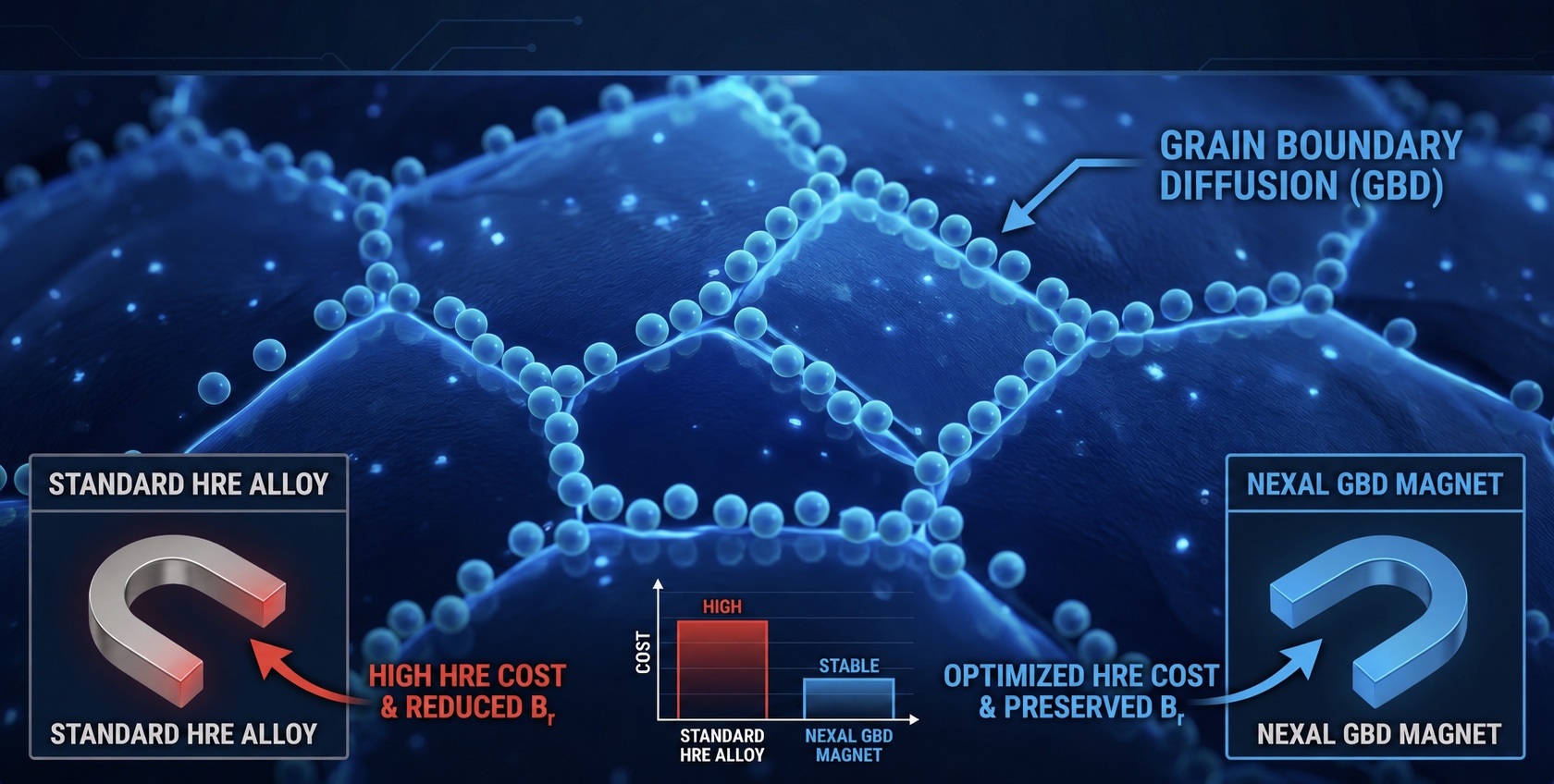

2. The GBD Mechanism: Precision Layering

Instead of wasting expensive Dy/Tb in the core of the magnet where it does nothing to combat external reverse fields, Nexal utilizes Grain Boundary Diffusion (GBD).

We apply a micro-coating of heavy rare earths to the sintered magnet surface and use precise thermal processing to diffuse the atoms strictly along the boundary lines of the NdFeB crystal grains.

[Standard Alloy Magnet: Dy Wasted in Core] ➔ Low Br, Extreme Price ❌ [Nexal GBD Magnet: Dy Focused on Boundaries] ➔ High Br, Optimized Cost

3. Data Comparison: Standard vs. GBD Performance

Material Profile	Remanence (Br)	Coercivity (Hcj)	Heavy Rare Earth (HRE) Consumed	Cost Impact for SME
Traditional 42UH	1.28 – 1.33 T	$\ge 21 MGOe$	100% Volume Alloyed	High & Volatile
Nexal 42SH + GBD	1.32 – 1.37 T	$\ge 21 MGOe$	Reduced by 60-70%	Predictable & Stable

4. The Nexal Advantage: Agility for Growing Robotics Startups

Tier-1 magnetic giants refuse to run custom GBD batches for orders under a few tons. Nexal breaks this barrier:

Zero-MOQ Prototyping: We configure our GBD diffusion curves specifically for your joint motor’s specific thermal signature, even for small-batch test runs.
Custom Coating Integration: We combine GBD with advanced surface treatments (such as Black Epoxy or Chemically Bonded NiCuNi) to match your precise environmental requirements.

Designing a next-gen cobot joint or humanoid actuator? Don’t let material costs stall your prototype.

Contact Nexal’s GBD Team for a cost-optimized material simulation.
